MXH SERIES(四通道)
技术参数
立体声输出功率 8Ω Stereo Power
型号Model
MXH-930

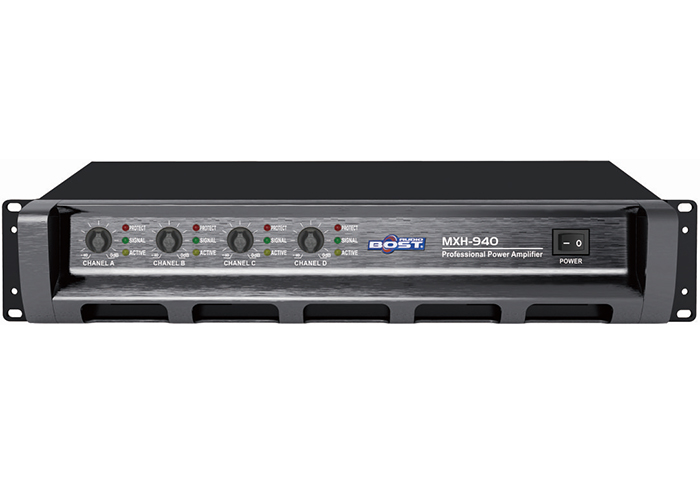

MXH-940
MXH-950
MXH-960

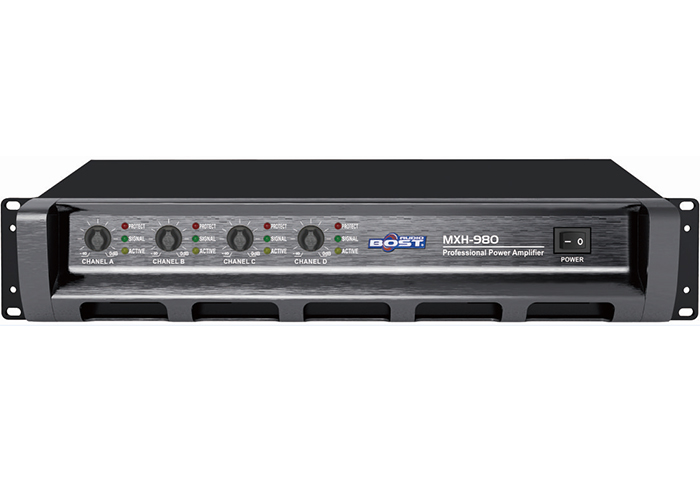

MXH-980

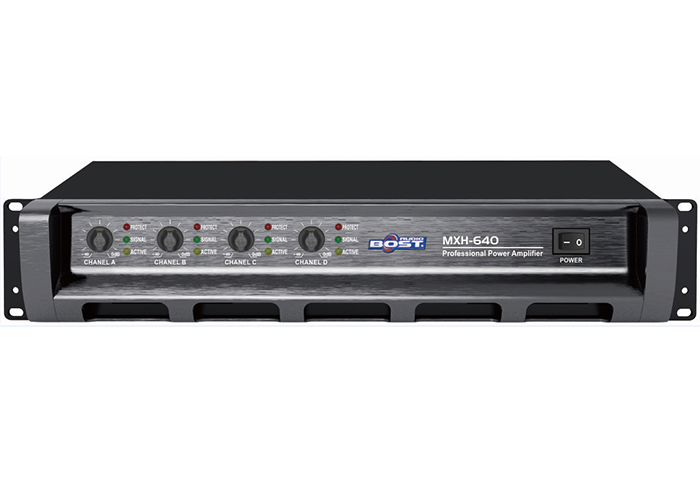

MXH-640
300Wx4
400Wx4
500Wx4
600Wx4
800Wx4
600Wx2+400Wx2
立体声输出功率 4Ω Stereo Power
450Wx4
600Wx4
750Wx4
900Wx4
1200Wx4
900Wx2+600Wx2
桥接输出功率 8Ω Bridged mono output
900Wx2
1200Wx2
1500Wx2
1800Wx2
2400Wx2
1800W+1200W
信噪比S/N Ratio
105dB
105dB
105dB
105dB
110dB
110dB
转换速率 Conversion Rate
50v/μS
50v/μS
60v/μS
60v/μS
70v/μS
70v/μS
阻尼系数 Damping Factor
500:1
500:1
550:1
550:1
600:1
600:1
频率响应Frequency Response
20Hz-20KHz(+/-0.5dB)
总谐波失真THD
≤0.05%Rated Power@8Ω 1KHZ
互调失真IMD
≤0.01%Rated Power@8Ω
输入灵敏度 Input Sensitvity
0.775v. 1.0v . 1.44v
输入阻抗 Input Impedance
20KΩ(Blance)/10KΩ(Unbalance)
串音Crosstalk
≤-80dB
保护功能protection
直流，短路，超温，压限，软启动等DC,Short circuit,Temperature,Clip Limiter,Slow star
重量Weight
20kg
23kg
26kg
28kg
30kg
27kg
尺寸Dimensions(WxDxH)
483x460x89mm
