产品分类
THX影院功放
技术参数
|
型号model |
THX-517 |

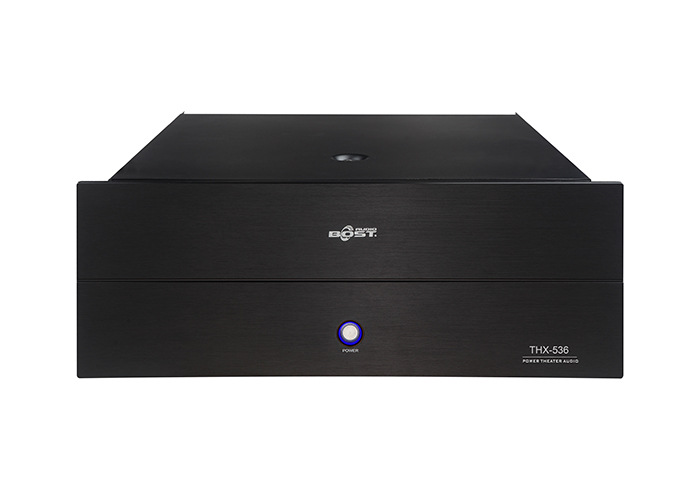

THX-536 | THX-510 |
|
8欧主声功率（L) 8Ω |
400W |
300W |
600W |
|
8欧主声功率（R) 8Ω |
400W |
300W |
600W |
|
8欧中置功率（C) 8Ω |
400W |
300W |
600W |
|
8欧左后环绕功率（SL) |
400W |
300W |
350W |
|
8欧右后环绕功率（SR) |
400W |
300W |
350W |
|
8欧左侧环绕功率（BL) |
/ |
/ | / |
|
8欧右侧环绕功率(BR) |
/ |
/ | / |
|
8欧超低音功率（SW） |
800W |
600W |
1200W |
|
信噪比S/N Ratio |
105dB |
105dB |
105dB |
|
转换速率Conversion Rate |
60v/µS |
60v/µS |
60v/µS |
|
阻尼系数 Damping Factor |
450:1 |
450:1 | 450:1 |
|
频率响应Frequency Response |
20Hz-20KHz(+/-0.5dB) |
||
|
总谐波失真THD |
≤0.01%Rated Power@8Ω 1KHZ |
||
|
互调失真IMD |
≤0.01%Rated Power@8Ω |
||
|
输入灵敏度 Input Sensitvity |
1.0v |
||
|
输入阻抗 Input Impedance |
20KΩ (Balance)/10KΩ (Unbalance) |
||
|
串音Crosstalk |
≤-70dB |
||
|
主电源 |
-230V50/60Hz ; HUSE:T20A |
||
|
重量Weight |
35kg |
||
|
尺寸Dimensions(WxDxH) |
483×430×176mm | ||
