产品分类

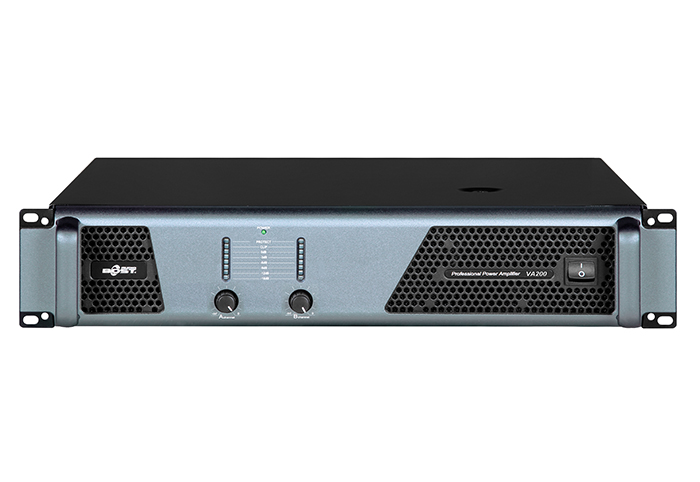

VA SERIES 专业功放
技术参数
|
型号Model |
VA200 | VA400 | VA400 | VA500 | |
|
立体声输出功率 8Ω Stereo Power |
200Wx2 |
300Wx2 |
400Wx2 |
500Wx2 |
|
|
立体声输出功率 4Ω Stereo Power |
300Wx2 |
450Wx2 |
600Wx2 |
750Wx2 |
|
|
桥接输出功率 8Ω Bridged mono output |
600W |
800W |
1000W |
1200W |
|
|
信噪比S/N Ratio |
>90dB |
>90dB |
>95dB |
>100dB |
|
|
转换速率 Conversion Rate |
60V/μS |
60V/μS |
60V/μS |
60V/μS |
|
|
阻尼系数 Damping Factor |
>400 |
>400 |
>450 |
>550 |
|
|
频率响应Frequency Response |
20Hz-20KHz(+/-0.5dB) |
||||
|
总谐波失真THD |
≤0.03%Rated Power@8Ω 1KHZ |
||||
| 互调失真IMD | ≤0.01%Rated Power@8Ω | ||||
|
输入灵敏度 Input Sensitvity |
0.775v. 1.0v . 1.44v | ||||
|
输入阻抗 Input Impedance |
20KΩ(Balance)/10KΩ(Unbalance) |
||||
| 串音Crosstalk | ≤-70dB | ||||
| 输入 |
XLR+TRS1/4"复合输入接口 |
||||
|
保护功能protection |
采用强制散热设计；具有安全保护措施和工作状态指示，短路、过载、直流和过热保护、变压器过热保护、软启动 |
||||
|
重量Weight |
16kg |
17kg |
17.5kg |
18kg |
|
|
尺寸Dimensions(WxDxH) |
483x430x88mm |
||||
|
型号Model |
VA600 | VA800 | VA1000 | VA1300 | |
|
立体声输出功率 8Ω Stereo Power |
600Wx2 |
800Wx2 |
1000Wx2 |
1300Wx2 |
|
|
立体声输出功率 4Ω Stereo Power |
900Wx2 |
1200Wx2 |
1500Wx2 |
1950Wx2 |
|
|
桥接输出功率 8Ω Bridged mono output |
1500W |
1800W |
2300W |
2800W |
|
|
信噪比S/N Ratio |
>100dB |
>100dB |
>104dB |
>104dB |
|
|
转换速率 Conversion Rate |
60V/μS |
60V/μS |
60V/μS |
60V/μS |
|
|
阻尼系数 Damping Factor |
>550 |
>550 |
>600 |
>600 |
|
|
频率响应Frequency Response |
20Hz-20KHz(+/-0.5dB) |
||||
|
总谐波失真THD |
≤0.05%Rated Power@8Ω 1KHZ | ||||
| 互调失真IMD | ≤0.01%Rated Power@8Ω | ||||
| 输入灵敏度 Input Sensitvity | 0.775v. 1.0v . 1.44v | ||||
| 输入阻抗 Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) | ||||
| 串音Crosstalk | |||||
|
输入 |
XLR+TRS1/4"复合输入接口 |
||||
|
保护功能protection |
采用强制散热设计；具有安全保护措施和工作状态指示，短路、过载、直流和过热保护、变压器过热保护、软启动 | ||||
|
重量Weight |
19kg | 21kg | 22.5kg | 23kg | |
|
尺寸Dimensions(WxDxH) |
483x430x88mm | ||||
产品结构
