PRO-106D/PRO-108D
技术参数
| 型号Model | PRO-106D | PRO-108E |
|
单元组成 Drivers |
LF: 1*6" |
LF: 1*8" |
|
额定功率Rated Power |
40W |
50W |
|
最大功率 Recommended AMP |
80W |
100W |
|
额定阻抗(Nominal impedance) |
8 ohms |
8 ohms |
|
频率范围(Frequency Range) |
65Hz-20KHz |
60Hz-20KHz |
|
灵敏度(Sensitivity(1m/1W)) |
89dB |
90dB |
|
最大声压级(MAX SPL) |
108dB |
110dB |
|
辐射角度：Dispersion(HxV) |
90°*60° |
90°*60° |
|
产品尺寸 Dimensions(W*D*H)（mm) |
240*240*160 |
280*280*190 |
|
净重(Net weight) (Kg) |
3.17Kg | 3.87Kg |

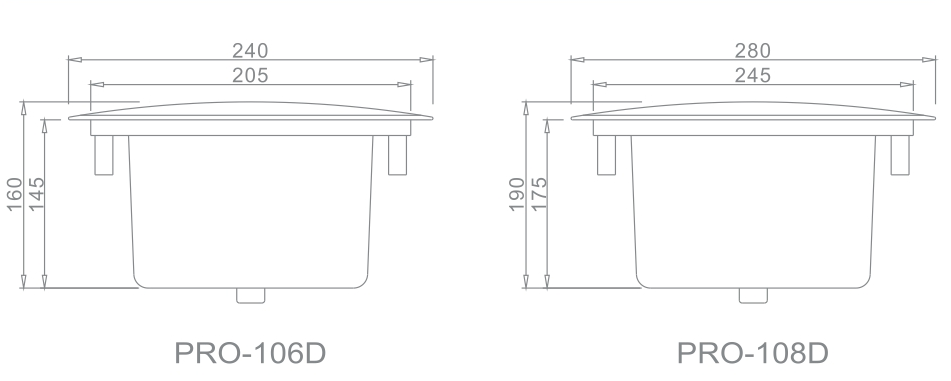

产品结构
