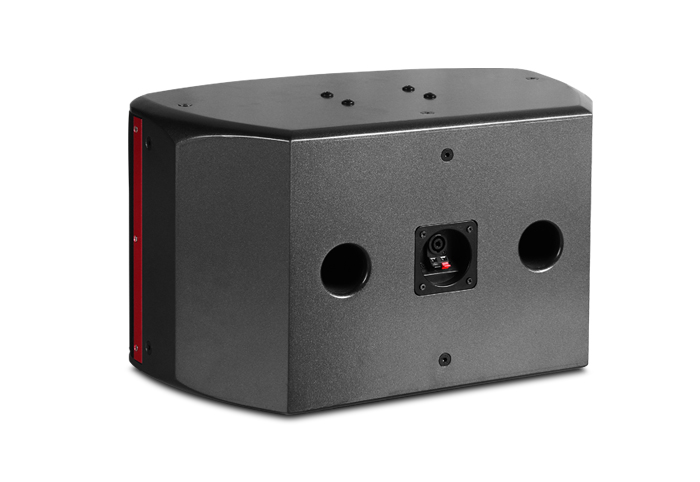

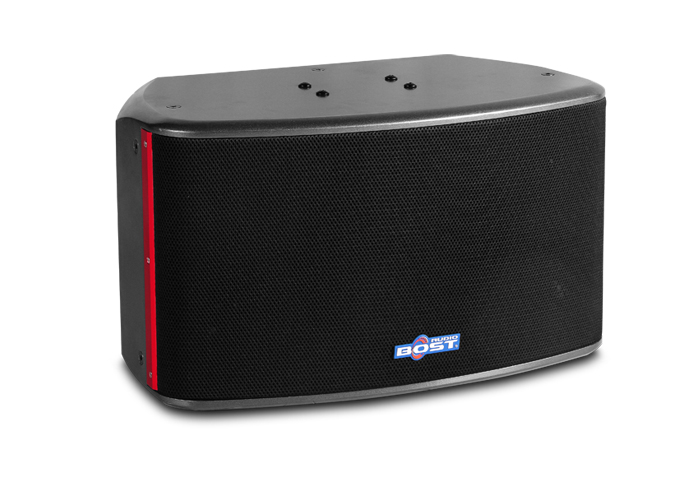

OK340(10"three-way speaker)
Applications
Application Range: KTV, Club, DISCO, nightclubs, dance halls, bars, luxury rooms, auditorium, karaoke rooms
Product Features
Specifications
| Model: | OK340 |
|
Drivers: |
LF: 1x10" / MF:2x4"/ HF:2x3"Cone |
|
Rated Power: |
300W |
|
Recommended Amplifier: |
450W |
|
Nominal Impedance: |
4 ohms |
|
Frequency Range: |
33Hz-19KHz |
|
Sensitivity(1m/1w): |
94dB |
|
MAX SPL: |
122dB |
|
Dispersion(HxV) |
100°*90° |
| IP rating | IP55/IP68 |
|
CONSTRUCTION |
|
|
Enclosure Material: |
Birch plywood |
|
Enclosure Grille: |
Breathable cotton and drilled metal |
|
Finish: |
Water resistant paint (water-base) |
|
Dimensions(mm): |
W545xD318xH315 |
|
Net Weight: |
18.4Kg |
