System Type：

Internal, external three-way system

Rated power (built-division):

800W/8 ohms AES

Rated power (external division):

HF：100W/MF:250W / LF：400W

Rated impedance:

HF：8 ohms/ MF:8 ohms/ LF：8 ohms

Frequency range (± 3dB):

45Hz-18KHz

Coverage:

H90º，V50º

Sensitivity:

HF：115 dB/ MF：110dB/ LF：99 dB

MAX SPL:

HF：138 dB/MF：137dB/ LF：128 dB

Wiring:

Spring terminals

Unit:

HF：3"/ MF：10"/ LF：15"x1

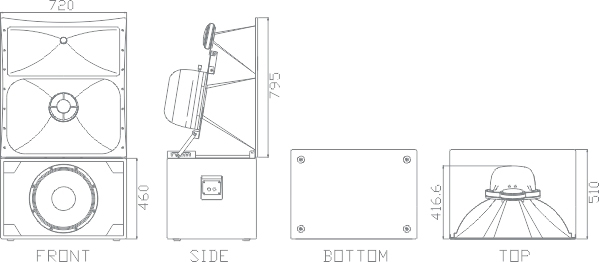

Size (HF&MF):

W720xH795xD417mm

Size (LF):

W720xH460xD510mm
