System Type：

Internal, external three-way system

Rated power (built-division):

1200W/4 ohms AES

Rated power (external division):

HF：100W/MF:250W / LF：800W

Rated impedance:

HF：8 ohms/ MF:8 ohms/ LF：4 ohms

Frequency range (± 3dB):

40Hz-18KHz

Coverage:

H90º，V50º

Sensitivity:

HF：115 dB/ MF：110dB/ LF：101 dB

MAX SPL:

HF：138 dB/MF：137dB/ LF：133 dB

Wiring:

Spring terminals

Unit:

HF：3"/ MF：10"/ LF：15"x2

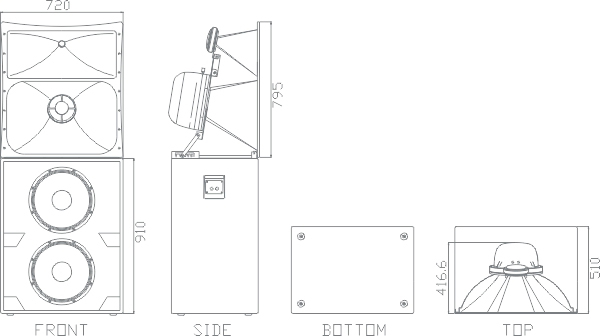

Size (HF&MF):

W720xH795xD417mm

Size (LF):

W720xH910xD510mm
