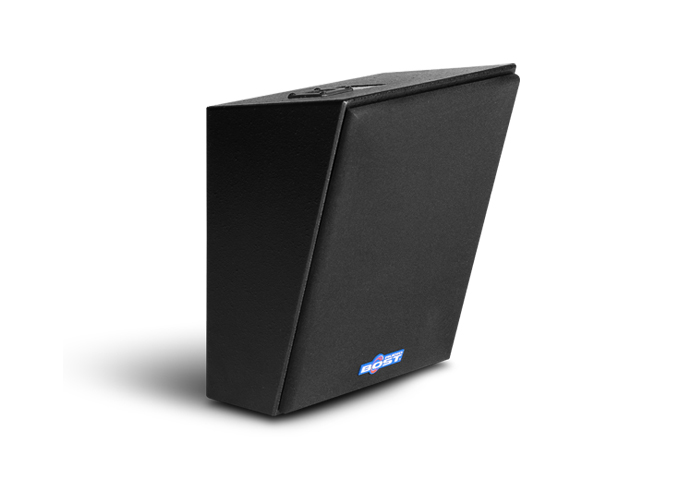

TR10(10" 2-Way Surround Speaker)
Applications
Product Features
Specifications
|
System Type： |
Internal two-way system |
|
Rated power (built-division): |
200W/8 ohms AES |
|
Rated impedance: |
8 ohms |
|
Frequency range (± 3dB): |
50Hz-20KHz |
|
Coverage: |
H100º，V100º |
|
Sensitivity: |
95 dB |
|
MAX SPL: |
121 dB |
|
Wiring: |
Spring terminals |
|
Unit: |
HF：1.35"/ LF：10"x1 |
|
Size : |
W398xH519xD268mm |
Configuration
