Products

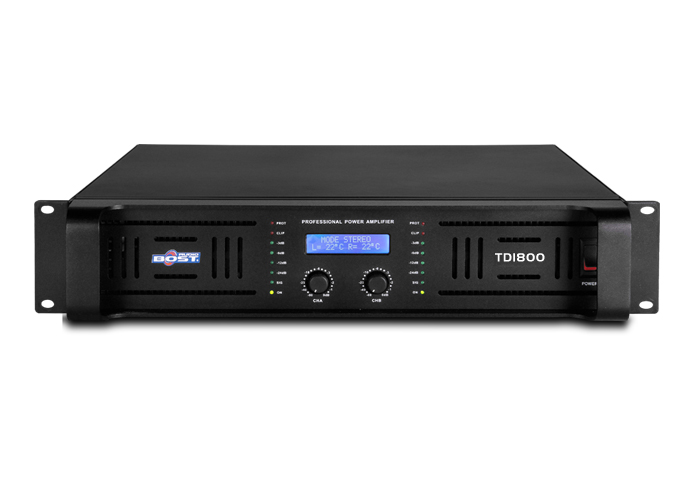

TD SERIES
Specifications
|
Model |
TD400 | TD600 | TD800 | TD1000 | TD1300 | TD1500 | TD1800 |
|
8Ω Stereo Power |
400Wx2 |
600Wx2 |
800Wx2 |
1000Wx2 |
1300Wx2 |
1500Wx2 |
1800Wx2 |
|
4Ω Stereo Power |
600Wx2 |
900Wx2 |
1200Wx2 |
1500Wx2 |
2000Wx2 |
2200Wx2 |
2700Wx2 |
|
8Ω Bridged mono output |
1200W |
1800W |
2400W |
3000W |
3900W |
4400W |
5400W |
|
S/N Ratio |
105dB |
105dB |
105dB |
105dB |
110dB |
110dB |
110dB |
|
Conversion Rate |
50v/μS |
50v/μS |
60v/μS |
60v/μS |
70v/μS |
70v/μS |
70v/μS |
|
Damping Factor |
500:1 |
500:1 |
550:1 |
550:1 |
600:1 |
600:1 |
600:1 |
|
Frequency Response |
20Hz-20KHz(+/-0.5dB) |
||||||
|
THD |
≤0.03%Rated Power@8Ω 1KHZ |
||||||
|
IMD |
≤0.01%Rated Power@8Ω |
||||||
|
Input Sensitvity |
0.775v. 1.0v. 1.44v |
||||||
|
Input Impedance |
20KΩ(Balance)/10KΩ(Unbalance) |
||||||
|
Crosstalk |
≤-80dB | ||||||
|
protection |
DC,Short circuil, Over temperature, Clip Limiter,Slow start |
||||||
|
Weight |
12kg |
12kg |
12.5kg |
12.5kg |
13kg |
13kg |
14kg |
|
Dimensions(WxDxH) |
483x381x89mm |
||||||
