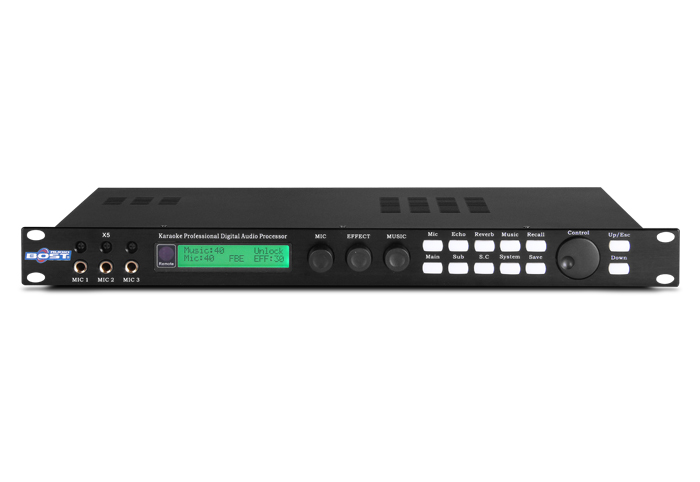

X5 Karaoke Digital Audio Processor
Product Description
● This series is having the effect of Kara OK speaker processor functions, each part of the function are independently adjustable;
● Adopt 24Bit data bus and 32Bit DSP;
● MUSIC input channel features a 7-band parametric equalizer
● MIC input channels with a 15-band parametric equalizer
● The main output has a 5-band parametric equalizer
● the rear output, rear output and subwoofer has 3-band parametric equalizer
● There are three microphone feedback inhibition, and can choose OFF / ON
● can store 16 patterns
● microphone output, main output, the rear output, subwoofer output and rear output are equipped with limiter and delay function
● site administrator mode and user mode, user mode after adjusting the parameters can not be stored
● This machine is equipped with a full-featured menu can also be set via PC interface
● Adopt 24Bit data bus and 32Bit DSP;
● MUSIC input channel features a 7-band parametric equalizer
● MIC input channels with a 15-band parametric equalizer
● The main output has a 5-band parametric equalizer
● the rear output, rear output and subwoofer has 3-band parametric equalizer
● There are three microphone feedback inhibition, and can choose OFF / ON
● can store 16 patterns
● microphone output, main output, the rear output, subwoofer output and rear output are equipped with limiter and delay function
● site administrator mode and user mode, user mode after adjusting the parameters can not be stored
● This machine is equipped with a full-featured menu can also be set via PC interface
Specifications
|
Model |
X5 |
|
Maximum input level |
4V（RMS) |
|
Maximum output level |
4V（RMS) |
|
Music channel gain |
MAX:12dB |
|
Microphone sensitivity |
64mV(Out:4V) |
|
SNR |
>80dB |
|
Input voltage |
-220V 50Hz |
|
Dimensions (L x W x H) |
483x218.5x47.5mm |
|
Net weight |
3.5Kg |
