Location:HOME >> Products >> BP SERIES >> BP-10

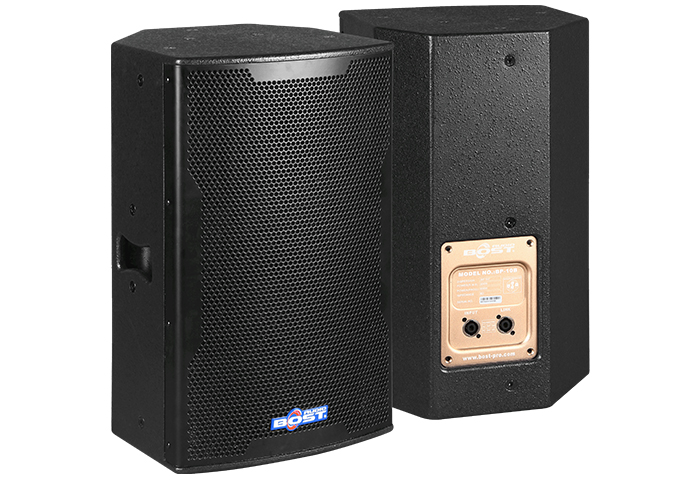

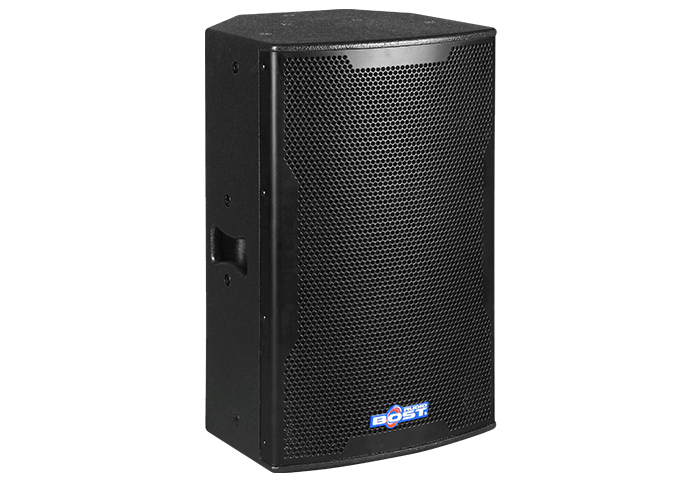

BP-10(Two-way 10" Full Range Speaker)

Product Description

1. box of high quality plywood combined into the slot wedge bonding process, so that the cabinet structure is more durable. Before adopting the low-frequency inverter design allows clean and powerful.

2. treble driver uses 1.75 "diaphragm assembly imported from Europe, the horn can use multi-angle rotation, bass 10" uses the same materials made European imports. With superior sound pressure level and clear translucent high-frequency, either singing or doing high-end business meeting class PA are the best option.

3. rapid expansion of the treble horn adjust the time difference between the high and low frequency unit and calibration phase angle difference and ensure a smooth wavefront provide precise beam pattern control while carefully designed to eliminate interference crossover point in the nearby area.

4. crossover network imported from Germany, HI-CAP golden high quality capacitors and air-core inductors round, Treble BOST patent protection circuit design, superior heat resistance of aluminum with aluminum radiator used together to maximize the efficiency and reducing unnecessary distortion.

5. Through many years of senior engineers KTV audio concept design, design principles box with multi-angle, so quick and easy on-site installation debugging, structural safety and reasonable.

Applications

Application range: KTV rooms, karaoke rooms, function rooms, conference rooms, reception rooms, cafes, hotels clubs


Product Features



Color Selection


Specifications

Drivers:
LF:  1x10" / HF:1x1.75"
Rated Power:
300W
Recommended Amplifier:
450W
Nominal Impedance:
8 ohms
Frequency Range:
65Hz-19KHz
Sensitivity(1m/1w):
97dB
MAX SPL:
125dB
Dispersion(HxV)
90°*60°
CONSTRUCTION
Enclosure Material:
Birch plywood
Enclosure Grille:
Posted breathable cotton dust inside black holes are hexagonal steel mesh
Finish:
Environmentally friendly water-based paint wear-resistant (color can be customized)

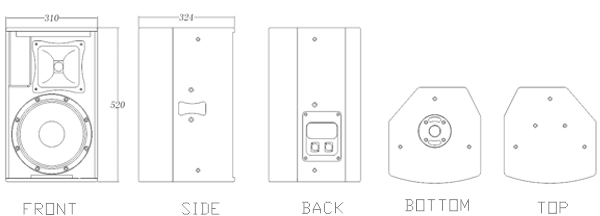

Dimensions(mm):
W310xD324xH520
Net Weight:
16.6Kg

Configuration
