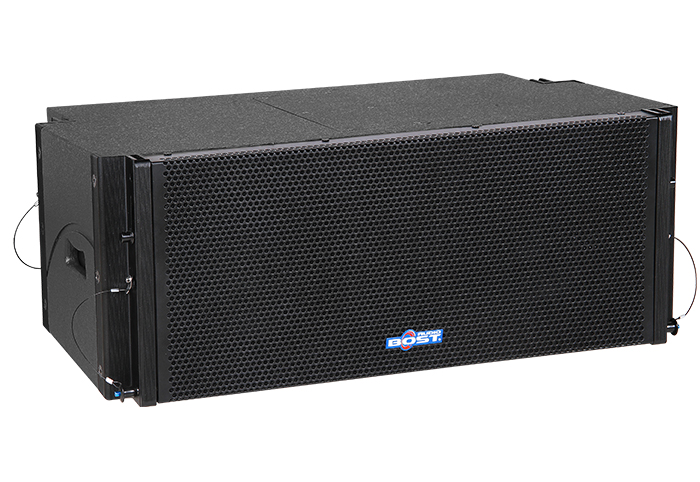

LA210A(2x10" 2-way line array system)
Product Description
1.LA210A with built-in two-way design, LA210A use two 10-inch neodymium LF drivers and two 1.75-inch neodymium tweeter drive head, treble with a high compression ratio of the horn line array dedicated to make high-frequency sound pressure higher , more uniform sound field.

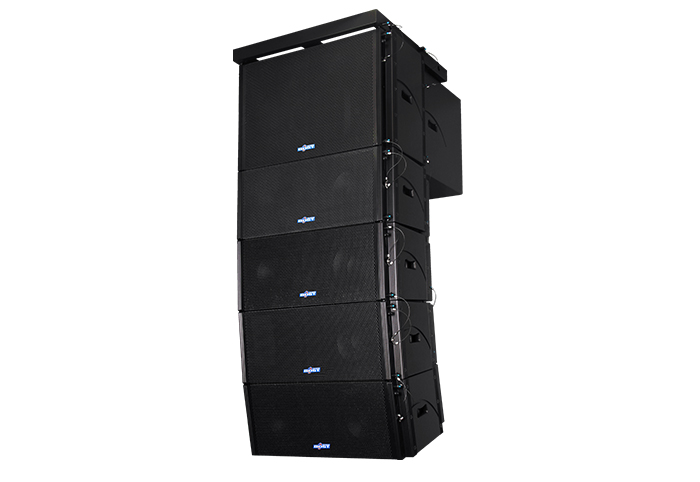

2. unique cabinet design, can be used in combination with the LA215, either mounted on the ceiling, but also from the ground-stacked installation, convenient and quick installation, safe and reliable.
2. unique cabinet design, can be used in combination with the LA215, either mounted on the ceiling, but also from the ground-stacked installation, convenient and quick installation, safe and reliable.
Applications
Application Range: theaters, auditoriums, ballrooms, touring, sports venues, function rooms, large conference rooms

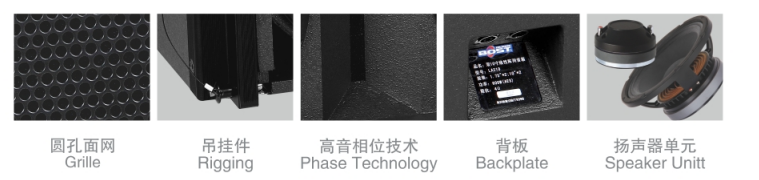

Product Features
Color Selection
Specifications
|
Drivers: |
LF: 2x10"/ HF:2x1.75" |
|
Rated Power: |
600W |
|
Recommended Amplifier: |
800W |
|
Nominal Impedance: |
16 ohms |
|
Frequency Range: |
65Hz-19KHz |
|
Sensitivity(1m/1w): |
102dB |
|
MAX SPL: |
133dB |
|
Dispersion(HxV) |
120° *15° |
|
CONSTRUCTION |
|
|
Enclosure Material: |
Birch plywood |
|
Enclosure Grille: |
Paste breathable cotton dust inside the hole black stencil |
|
Finish: |
Environmentally friendly water-based paint wear brown (color can be customized) |
|

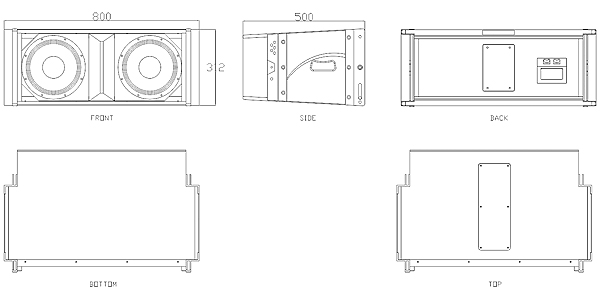

Dimensions(mm): |
W800xD500xH312 |
|
Net Weight: |
38.2Kg |
Configuration
