BAR315(Customized)
Product Description
Applications
Scope of application: bars, slow rock, multi-function hall, the hall
Product Features
Specifications
| Model | BAR315 |
|
Drivers |
LF:1*15" 75core neodymium/MF:1*8" 50core 140magnetic/HF（import）:1*1.75" 44core120magnetic |
|
Rated Power |
LF:400W/HF&MF:250W |
|
Rated power |
LF:600W/HF&MF:450W |
|
Nominal impedance |
LF:8 ohms/HF&MF:8 ohms |
|
Frequency Range |
50Hz-19KHz |
|
Sensitivity(1m/1W) |
LF:102dB/HF&MF:106dB |
| MAX SPL |
LF:131dB/HF&MF:133dB |
|
Construction |
|
|
Enclosure Material |
Birch plywood |
|
Finish |
Purple,green water resistant paint(can be custom color according to customer's request) |
|

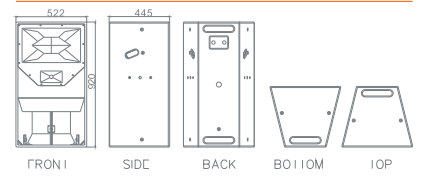

Dimensions(W*D*H)（mm) |
W522*D445*H920 |
|
Net weight (Kg) |
37.9 Kg |
Configuration
