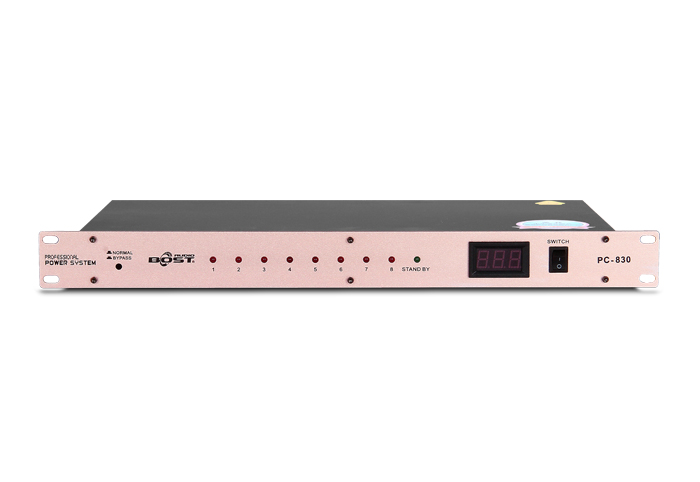

PC-830Power timing
Product Description
1. 2 meters cable with large current 30A , power input connection is convenient, with music the total load current can be up to 120A.
2. short and simple , up to eight socket can be connected
3. panel switch design conform to the requirements of the safety equipment, not a one-time open or shut off all connected devices
4. Embedded microcontrollers, ensure the PC - 820 order from 1 to 8 road up from 8 to 1 road and reverse shut
5. 1 u chassis design, ensure the chassis heat dissipation is good
6. The machine is easy to operate, powerful, cost-effective
2. short and simple , up to eight socket can be connected
3. panel switch design conform to the requirements of the safety equipment, not a one-time open or shut off all connected devices
4. Embedded microcontrollers, ensure the PC - 820 order from 1 to 8 road up from 8 to 1 road and reverse shut
5. 1 u chassis design, ensure the chassis heat dissipation is good
6. The machine is easy to operate, powerful, cost-effective
Specifications
| Model |
PC-830 |
|
Maximum input current |
60A |
|
Single way maximum output current |
30A |
|
Working voltage |
220V 50/60Hz |
|
Each power all the way |
Every way is up to 3000 w |
|
The input and output voltage |
AC input voltage = AC output voltage (optional) |
|
The output power socket |
The multi-purpose socket, in line with European and American standards.Eight controlled universal socket rear panel |
|
Socket material |
Each socket material phosphor copper, passed inspection before installation |
|
Each switch time between all the way |
1 second, each switch, indicating all the way, the front-end configuration a safety switch button (BYPASS) |
|
relay |
Ningbo pine le card (original quality goods) |
|
Circuit board line |
Using 60% high purity tin, high-end distribution technology, through enhancing bold processing |
|
transformer |
A &c original authentic |
|
The power cord |
3 * 6 square cable, cable configuration length of 1.5 meters (with plug) |
|
The voltage display table |
Digital display meter |
|
Chassis height |
1 u (civil) |
|
switch |
Glow built straight switch (button) |
|
Each separate switch function |
no |
|
Function of remote control |
Optional, remote control distance range of 10 meters, 15 m (no obstructions range) |
|
Online support |
no |
|
filter |
Capacitor filter |
