Products

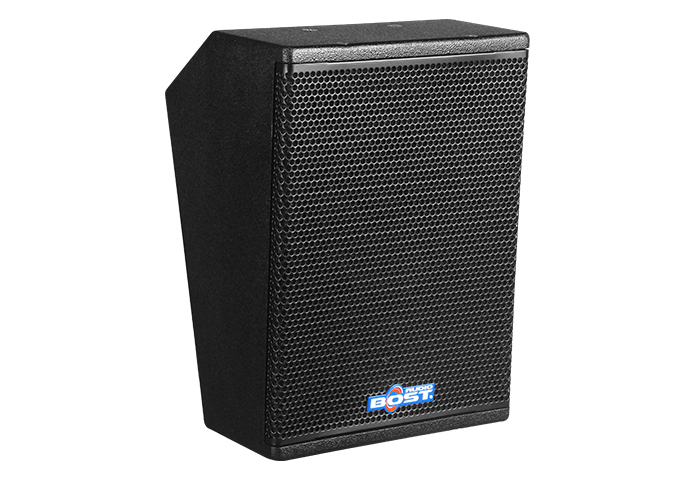

MQ308
Applications
Application Range: Conference room, lecture hall, multi-purpose hall, school, cafe, station, dock
Specifications
| Model |
MQ308 |
|
Drivers |

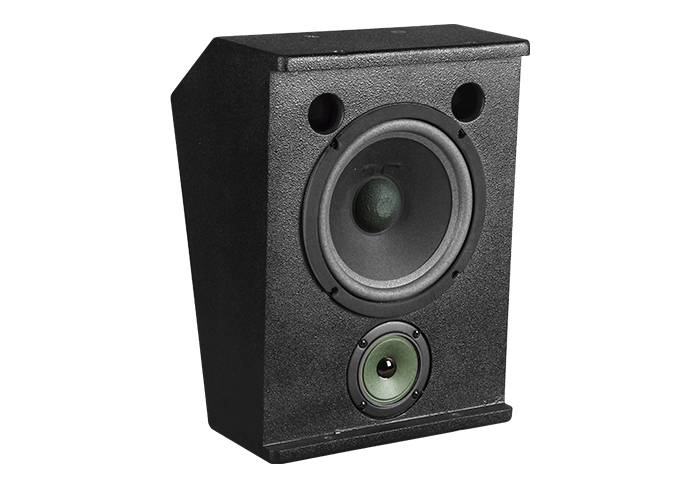

LF: 1*8" / HF: 1*3" |
|
Rated Power |
150W |
|
Rated power |
300W |
|
(Nominal impedance) |
8 ohms |
|
(Frequency Range) |
75Hz-19KHz |
|
(Sensitivity(1m/1W)) |
91dB |
|
(MAX SPL) |
116dB |
|
Dispersion(HxV) |
90°*90° |
|
Construction |
|
|
Enclosure Material |
High density fiberboard |
|
Enclosure Grille |
Black mesh frame with black mesh fabric |
|
Finish |
Black, environmental protection, oily, abrasion resistant paint (customized according to customer requirements) |
|

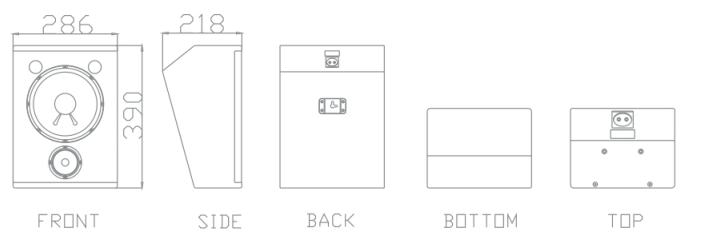

Dimensions(W*D*H)（mm) |
286*218*390 |
|
(Net weight) (Kg) |
6.2Kg |
Configuration
