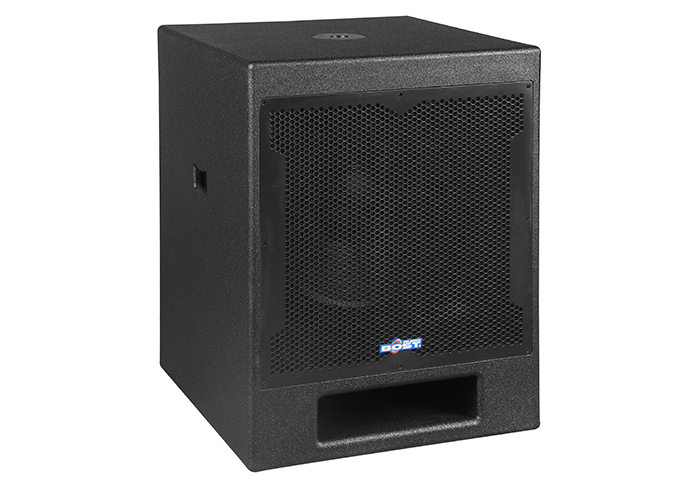

VC12B/VC12BE
Applications
Application Range: Function rooms, banquet halls, auditoriums, conference rooms, lecture halls, exhibition halls, cafes, home theater, luxury rooms, performing arts hall, club
Specifications
| Model | VC12B |
|
Drivers |
LF: 1*12" 190magnet, 75core |
|
Rated Power |
400W |
|
Rated power |
800W |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
25Hz-260KHz |
|
Sensitivity(1m/1W) |
95dB |
|
MAX SPL) |
124dB |
|
Construction |
|
|
Enclosure Material |
Plywood |
|
Enclosure Grille |
Air permeable cotton in black round hole dustproof steel mesh |
|
Finish |
Black environment-friendly waterproof and wear-resistant paint (color can be customized according to customer requirements) |
|
Dimensions(W*D*H)（mm) |
398*430*560 |
|
Net weight (Kg) |
24.5Kg |
| Molde | VC12BE |
|
Drivers |
LF: 1*12" |
|
Rated Power |
400W |
|
Rated power |
400W+900WActive Module with DSP |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
25Hz-260KHz |
|
Sensitivity(1m/1W) |
95dB |
|
MAX SPL |
124dB |
|
Construction |
|
|
Enclosure Material |
birch Plywood |
|
Enclosure Grille |
Air permeable cotton in black round hole dustproof steel mesh |
|
Finish |
Black environment-friendly waterproof and wear-resistant paint (color can be customized according to customer requirements) |
|
Dimensions(W*D*H)（mm) |
W398*D430*H560 |
|
Net weight (Kg) |
29.7Kg |
Configuration
