VC15B/VC15BE
Applications
Application range: conference hall, lecture hall, multi-function hall, auditorium, music classroom, small performance,etc.
Specifications
| Model | VC15B |
|
Drivers |
LF: 1*15" |
|
Rated Power |
400W |
|
Rated power |
800W |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
35Hz-350KHz |
|
Sensitivity(1m/1W) |
98dB |
|
MAX SPL |
127dB |
|
Construction |
|
|
Enclosure Material |
Plywood |
|
Enclosure Grille |
Air permeable cotton in black round hole dustproof steel mesh |
|
Finish |
Black environment-friendly waterproof and wear-resistant paint (color can be customized according to customer requirements) |
|

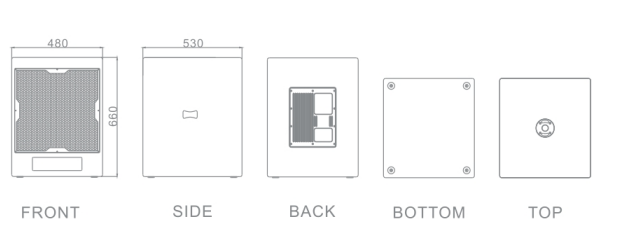

Dimensions(W*D*H)（mm) |
480*530*660 |
|
Net weight) (Kg) |
36.4Kg |
| Model | VC15BE |
|
Drivers |
LF: 1*15" |
|
Rated Power |
400W |
|
Rated power |
900W+1200W with DSP Active Module |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
35Hz-350KHz |
|
Sensitivity(1m/1W) |
98dB |
|
MAX SPL |
127dB |
|
Construction |
|
|
Enclosure Material |
Plywood |
|
Enclosure Grille |
Air permeable cotton in black round hole dustproof steel mesh |
|
Finish |
Black environment-friendly waterproof and wear-resistant paint (color can be customized according to customer requirements) |
|
Dimensions(W*D*H)（mm) |
480*530*660 |
|
Net weight (Kg) |
41.6Kg |
Configuration
