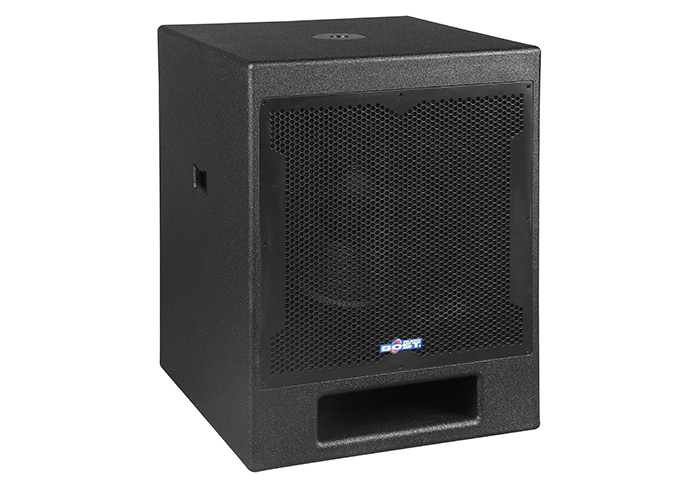

VC18B/VC18BE
Applications
Application range: conference hall, lecture hall, multi-function hall, auditorium, music classroom, small performance, etc.
Specifications
| Model | VC18B |
|
Drivers |
LF: 1*18" |
|
Rated Power |
600W |
|
Rated power |
1000W |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
28Hz-300KHz |
|
Sensitivity(1m/1W) |
100dB |
|
MAX SPL |
131dB |
|
Construction |
|
|
Enclosure Material |
Plywood |
| Enclosure Grille | Air permeable cotton in black round hole dustproof steel mesh |
|
Finish |
Black environmental protection waterproof and wear-resistant paint |
|

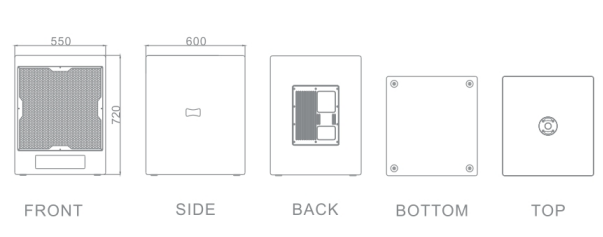

Dimensions(W*D*H)（mm) |
550*600*720 |
|
Net weight (Kg) |
46.9Kg |
| Model | VC18BE |
|
Drivers |
LF: 1*18" |
|
Rated Power |
600W |
|
Rated power |
900W+1200W with DSP processing active mould |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
28Hz-300Hz |
|
Sensitivity(1m/1W) |
100dB |
|
MAX SPL |
131dB |
|
Construction |
|
|
Enclosure Material |
Plywood |
|
Enclosure Grille |
Air permeable cotton in black round hole dustproof steel mesh |
|
Finish |
Black environmental protection waterproof and wear-resistant paint |
|

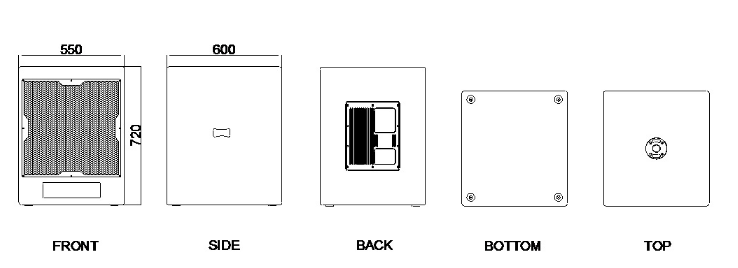

Dimensions(W*D*H)（mm) |
550*600*720 |
|
Net weight (Kg) |
52.1Kg |
Configuration
