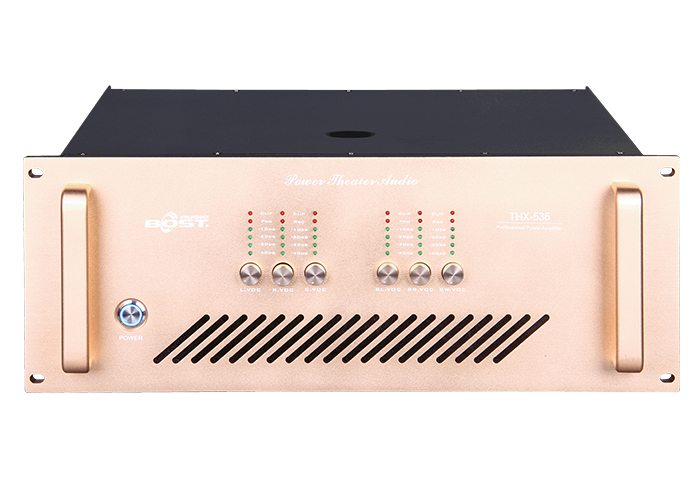

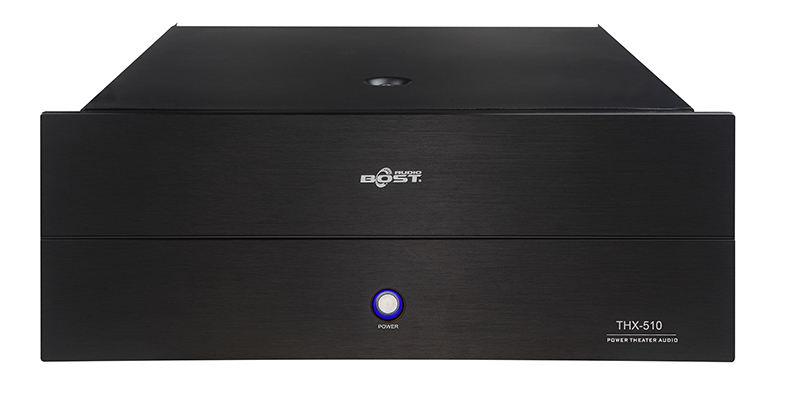

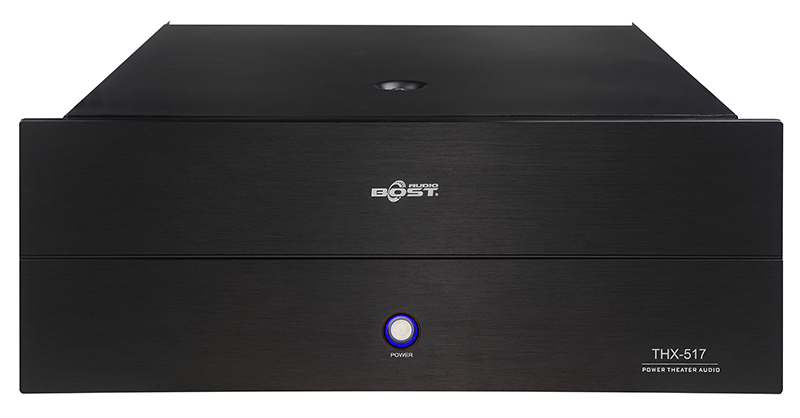

THX-510/THX-517/THX-536
Specifications
|
model |
THX-517 |
THX-536 | THX-510 |
|
8Ω main sound power（L) 8Ω |
400W |
300W |
600W |
|
8Ω main sound power（R) 8Ω |
400W |
300W |
600W |
|
8Ω center channel power（C) 8Ω |
400W |
300W |
600W |
|
8Ω the left after surround power |
400W |
300W |
350W |
|
8Ω the right rear surround power |
400W |
300W |
350W |
|
8Ωthe left surround the power |
/ |
/ | / |
|
8Ω the right surround power |
/ |
/ | / |
|
8Ω subwoofer power |
800W |
600W |
1200W |
|
S/N Ratio |
105dB |
105dB |
105dB |
|
Conversion Rate |
60v/µS |
60v/µS |
60v/µS |
|
Damping Factor |
450:1 |
450:1 | 450:1 |
|
Frequency Response |
20Hz-20KHz(+/-0.5dB) |
||
|
THD |
≤0.01%Rated Power@8Ω 1KHZ |
||
|
IMD |
≤0.01%Rated Power@8Ω |
||
|
Input Sensitvity |
1.0v |
||
|
Input Impedance |
20KΩ (Balance)/10KΩ (Unbalance) |
||
|
Crosstalk |
≤-70dB |
||
|
main power |
-230V50/60Hz ; HUSE:T20A |
||
|
Weight |
510/517: 40kg 536:30Kg |
||
|
Dimensions(WxDxH) |
483×430×176mm | ||
