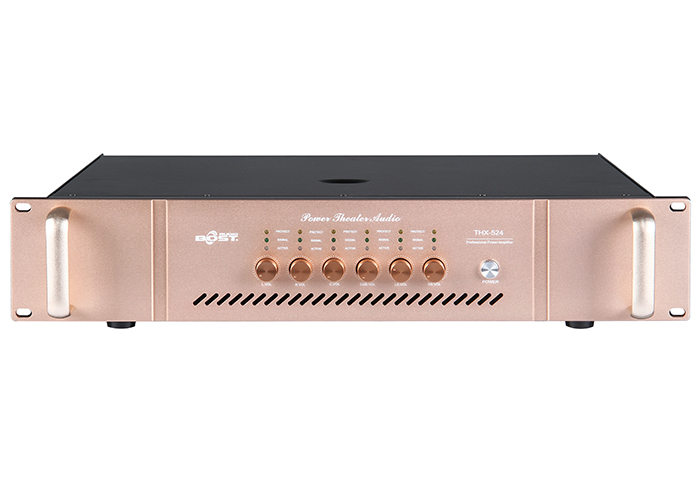

THX-524
Specifications
|
model |
THX-524 |
|
|
8Ω main sound power（L) 8Ω |
200W |
|
|
8Ω main sound power（R) 8Ω |
200W | |
|
8Ω center channel power（C) 8Ω |
200W |
|
|
8Ω the left after surround power |
200W |
|
|
8Ω the right rear surround power |
200W |
|
|
8Ω the left surround power |
/ |
|
|
8 Ω the right surround power |
/ |
|
|
8Ω the subwoofer power |
400W |
|
|
S/N Ratio |
103dB |
|
|
Conversion Rate |
60v/µS |
|
| Damping Factor | 400:1 | |
|
Frequency Response |
20Hz-20KHz(+/-0.5dB) |
|
|
THD |
≤0.01%Rated Power@8Ω 1KHZ |
|
|
Intermodulation distortion |
≤0.01%Rated Power@8Ω |
|
|
input sensitivity |
1.0v |
|
|
Input Impedance |
20KΩ (Balance)/10KΩ (Unbalance) |
|
|
Crosstalk |
≤-70dB |
|
|
main power |
-230V50/60Hz ; HUSE:T20A |
|
|
Weight |
21.5kg |
|
|
Dimensions(WxDxH) |
483×440×88mm |
|
