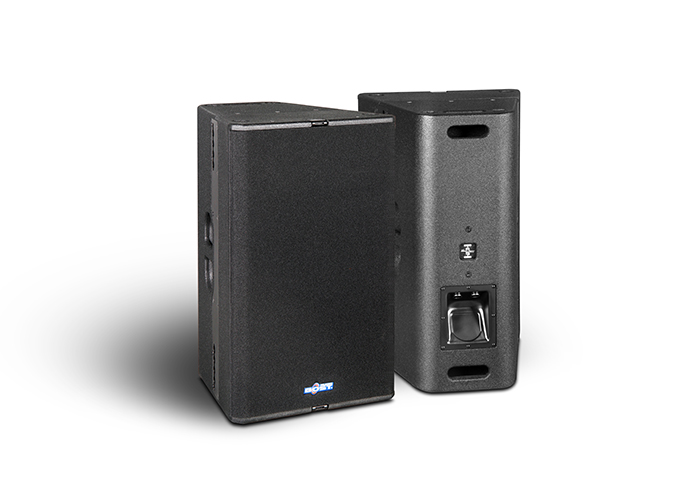

T24P
Applications
Application Range: Small and medium-sized performances, banquet halls, multi-function halls, auditoriums, schools, theaters, small gymnasiums
Product Features
Specifications
|
Drivers |

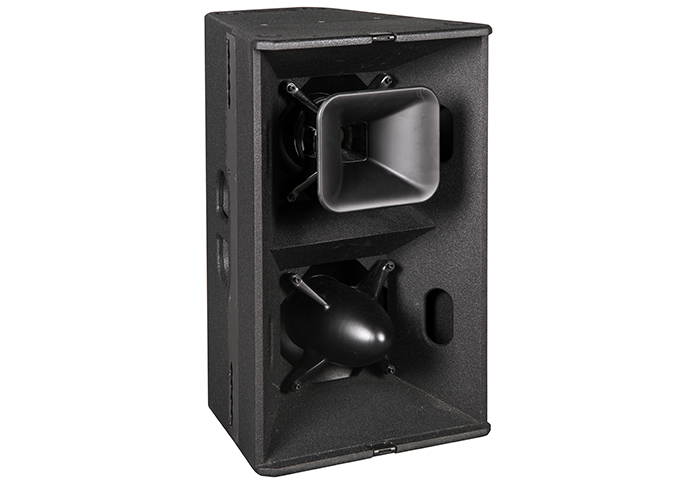

LF: 2*12"Neodymium magnet / HF: 1*3"Neodymium magnet |
|
Rated Power |
800W |
| Recommended AMP | 1100W |
|
Nominal impedance |
4 ohms |
|
Frequency Range |
100Hz-19KHz |
|
Sensitivity(1m/1W) |
108dB |
|
MAX SPL |
140dB |
|
Dispersion(HxV) |
90°*60° |
|
Construction |
|
|
Enclosure Material |
Birch Plywood |
|
Enclosure Grille |
Black square hole dustproof steel mesh with air permeable cotton |
|
Finish |
Black environmentally friendly water-borne two-component wear-resistant paint (color customized according to customer requirements) |
|
Dimensions(W*D*H)（mm) |
440*437*700 |
|
Net weight (Kg) |
37.6Kg |
Configuration
