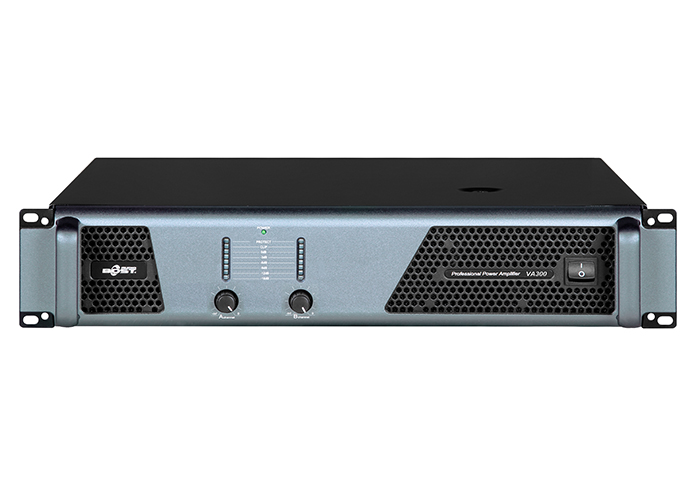

VA200/VA300/VA400/VA500/VA600/VA800/VA1000/VA1300
Specifications
|
Model |
VA200 | VA300 | VA400 | VA500 | |
|
8Ω Stereo Power |
200Wx2 |
300Wx2 |
400Wx2 |
500Wx2 |
|
|
4Ω Stereo Power |
300Wx2 |
450Wx2 |
600Wx2 |
750Wx2 |
|
|
S/N Ratio |
>90dB |
>90dB |
>95dB |
>100dB |
|
|
Conversion Rate |
60V/μS |
60V/μS |
60V/μS |
60V/μS |
|
|
Damping Factor |
>400 |
>400 |
>450 |
>550 |
|
|
Frequency Response |
20Hz-20KHz(+/-0.5dB) |
||||
|
THD |
≤0.05%Rated Power@8Ω 1KHZ |
||||
| IMD | ≤0.01%Rated Power@8Ω | ||||
|
Input Sensitvity |
0.775v. 1.0v . 1.44v | ||||
|
Input Impedance |
20KΩ(Balance)/10KΩ(Unbalance) |
||||
| Crosstalk | ≤-70dB | ||||
|
protection |
DC, Short Circuit, Overtemperature, Voltage Limit, Soft Start, etc.DC, short circuit，Temperature,Clip Limiter,Slow start |
||||
|
Weight |
16kg |
17kg |
17.5kg |
18kg |
|
|
Dimensions(WxDxH) |
483x430x88mm |
||||
|
Model |
VA600 | VA800 | VA1000 | VA1300 | |
|
8Ω Stereo Power |
600Wx2 |
800Wx2 |
1000Wx2 |
1300Wx2 |
|
|
4Ω Stereo Power |
900Wx2 |
1200Wx2 |
1500Wx2 |
1950Wx2 |
|
|
S/N Ratio |
>100dB |
>100dB |
>104dB |
>104dB |
|
|
Conversion Rate |
60V/μS |
60V/μS |
60V/μS |
60V/μS |
|
|
Damping Factor |
>550 |
>550 |
>600 |
>600 |
|
|
Frequency Response |
20Hz-20KHz(+/-0.5dB) |
||||
|
THD |
≤0.05%Rated Power@8Ω 1KHZ | ||||
| IMD | ≤0.01%Rated Power@8Ω | ||||
| Input Sensitvity | 0.775v. 1.0v . 1.44v | ||||
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) | ||||
| Crosstalk | |||||
|
protection |
DC, Short Circuit, Overtemperature, Voltage Limit, Soft Start, etc.DC，S红儿 circuit，Temperature,Clip Limiter,Slow start |
||||
|
Weight |
19kg | 21kg | 22.5kg | 23kg | |
|
Dimensions(WxDxH) |
483x430x88mm |
||||
