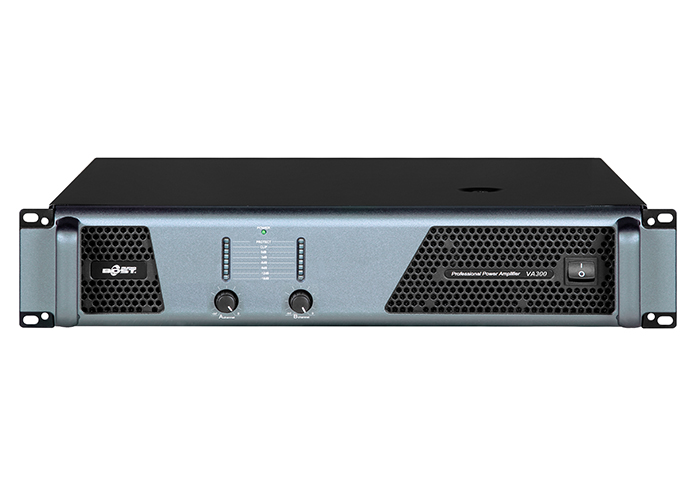

VA-812/VA-830/VA-840/VA-860/VA-880/VA-8100/VA-8130
Specifications
|
Model |
VA812 | VA830 | VA840 | VA860 | |
|
8Ω Stereo Power |
800Wx2+1200W |
300Wx4 |
400Wx4 |
600Wx4 |
|
|
Frequency Response |
20Hz-20KHz(+/-0.5dB) |
||||
| Total hamonic distortion/signal to noise ratio |
<0.05/> 90dB |
||||
| Damping coefficient/resolution | > 400/> 60dB | ||||
| Conversion rate |
> 13v/μS |
||||
| Input sensitivity |
32dB/1v/1.4v |
||||
| Input Impedance/output category | 20k/10k/Class 1 | ||||
| Voltage gain | 32dB | ||||
|
Cool down |
Air flow from front to rear | ||||
| Input/output | XLR/NL4/Binding post | ||||
| Features | Power/SIG/Clip/BRG/PAR | ||||
|
protection |
DC, Short Circuit, Overtemperature, Voltage Limit, Soft Start, etc.DC，Short circuit，Temperature,Clip Limiter,Slow start |
||||
|
Weight |
23kg |
18kg |
19kg |
21kg |
|
|
Dimensions(WxDxH) |
483x430x88mm |
||||
