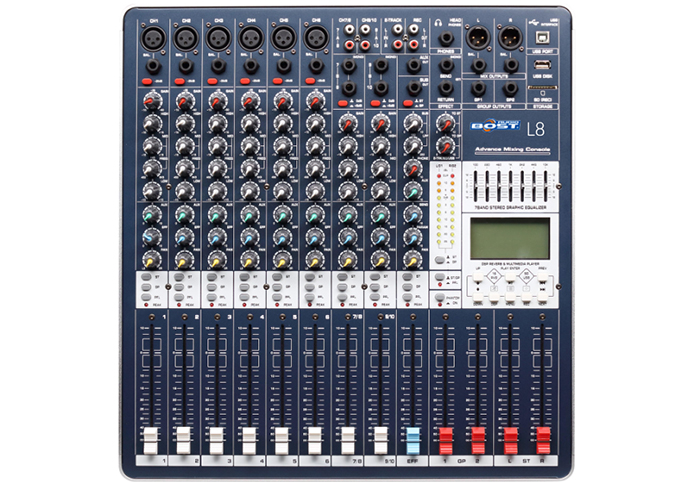

L8/L10/L14/L18/L24
Product Description
1. 2-way mixed output; AUX auxiliary output, 2-way signal input; SEND effect transmission and RETURN stereo return port; 2-way independent recording output and listening port
2. Band IF scanning, adjustable frequency_low noise, high precision microphone preamplifier, perfect sound quality
Audio effector is composed of YAMAHA YSS series digital chips, 16 ECHO/or DSP effects, realistic sound field, and display with high brightness blue digital tube; 7-segment stereo graphic equalizer
3. Balanced Microphone XLR Input and Balanced Line TRS Input, Three Sections of Channel Balanced, Taiwan's 100 mm Dual Slide Pusher, Feeling Lubricated and Durable
4. Independent PFL switch can monitor channel input, recording input signal and reverberation, main reverberation and output signal.
5.+48V phantom power supply, providing polarization voltage for input port and convenient connection of capacitive microphone
_Frequency-division point scanning type of overweight bass output, compatible with many occasions such as performing arts, conferences, disco entertainment; Headphone listening interface
USB Sound Card Play Function, USB cable can be used to connect the computer to play music, and can control the volume of the computer, select songs, play and pause functions.
SD card reader and file download function, can connect to the computer, read, edit and download SD card files
_USB and SD Dual Media Storage Interface
MP3, WAV and WMA three-decode multimedia player, multi-language menu, simultaneous display of Chinese and English lyrics and song titles, five built-in balanced modes
_2.8 inch super large blue LCD (liquid crystal) display
Built-in WAV format digital recording function for live recording
Accurate Logarithmic Double 10-Bit LED Level Display
Removable Aluminum Alloy Side Plate for Installation into Cabinet
National Semiconductor Power Supply Scheme, 85-260V World Power Supply Voltage, Energy-saving, Environmental Protection, High Efficiency and Reliability, Eliminating AC Acoustic Interference
German SMT process, by TDK, PHILIPS (Philips), RUBYCON (Ruby) and other high-quality materials carefully built
Specifications
(L8) 4-channel signal input and 2-channel stereo signal input
(L10) 6-channel signal input and 2-channel stereo signal input
(L18) 14-channel signal input and 2-channel stereo signal input
(L24) 20-channel signal input and 2-channel stereo signal input
Technical Parameters
Input Sensitivity MIC : -36dB LINE : -10dB Eff : -12dB Tape In : -26dB
EFFECTS : ECHO 12ms-200ms
Output Voltage : 4V MAX
Less Than ( THD ) : 0.03% ( 1KHz Full Power )
Frequency Response : 20Hz ~20KHz +/-3dB
Headphone Output : 7V 220Ω
Power Consumption : 40W ( L8), 45W(L10),, 50W(L14),55W(L18),55W(L24)
