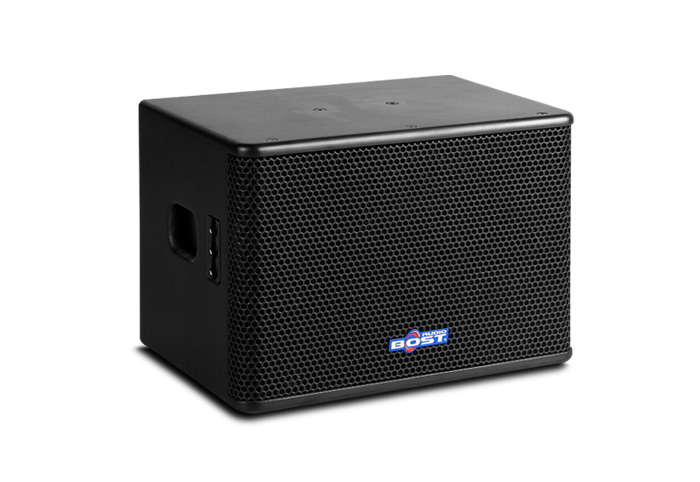

S10B (10' subwoofer)

Product Description

1. the box body adopts high-quality plywood combined with slotting and wedging technology to make the box structure more solid and durable.

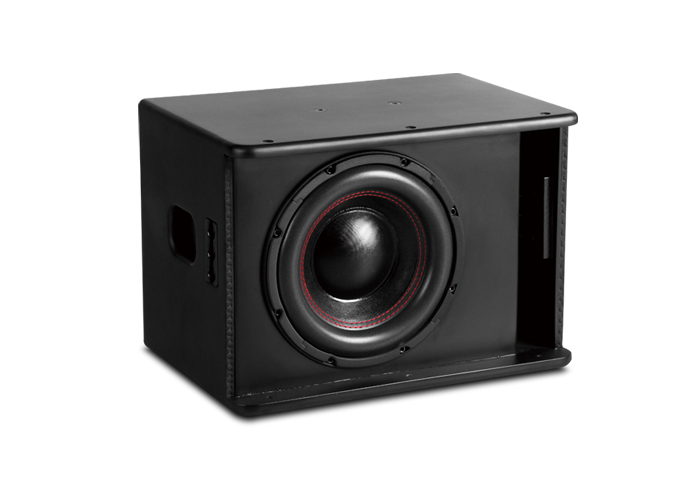

The professional high-power 10 "subwoofer unit adopts the ultra wide imported American bubble and 3" voice coil design, achieving the incomparable ultra-low frequency effect: small size, high power.

2. the top of the speaker adopts threaded base, which can be used together with a162 and a322. The box body is also equipped with three aluminum strips of aircraft with three holes, which can be hung at will.

3. Good heat dissipation is conducive to the reduction of compressed power when the speaker works at critical high power, ensuring the speaker works stably and efficiently for a long time.
4. The carefully optimized tuning makes the sound box have a good transient. The improved inverted phase system not only reduces the wind noise and air flow in the pipe, but also strengthens the structure of the box, reduces the adverse vibration of the box, and makes the sound more pure and solid.

Applications

Application Range: Multi function hall, banquet hall, auditorium, conference room, lecture hall, exhibition hall, coffee shop, home theater, private room low frequency sound supplement

Product Features

Specifications

Model S10B
 Drivers
LF:  1*10"
Rated Power
400W
Rated power
600W
Nominal impedance
 8 ohms
Frequency Range
 22Hz-260KHz
Sensitivity(1m/1W)
 92dB
MAX SPL
 121dB
Construction
Enclosure Material
Birch splint
Enclosure Grille
 Black hexagonal hole dust-proof steel mesh with breathable cotton inside
Finish
Black environmental friendly water-based wear-resistant paint (color can be customized according to customer requirements)
Dimensions(W*D*H)(mm)
W450*D310*H316
Net weight)  (Kg)
 16.3Kg

Configuration
