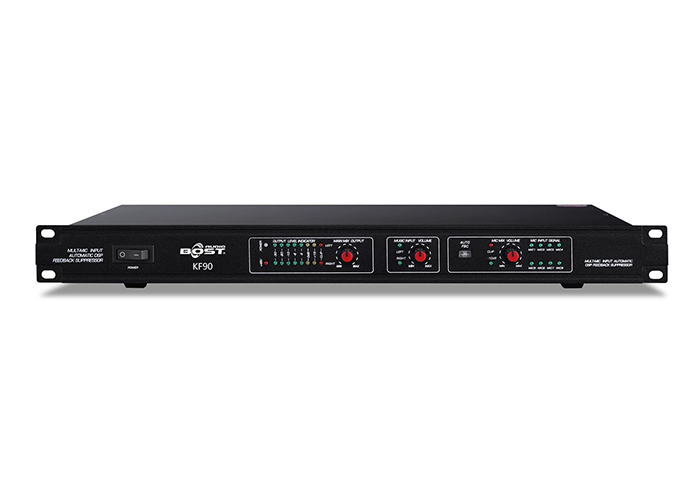

KF90
Product Description
Main features
1. Effectively suppress microphone whistling and eliminate feedback in advance, one-button operation mode, simple and easy to use
2. Using DSP technology, real-time capture of howling points, automatically adapt to the acoustic environment
3. Ultra-long conference microphone pickup distance, which can automatically adapt to the pickup distance
4. 8+2 input, 8 microphone input and two LINE input (music input), microphone and line input gain is adjustable, the adjustment range is greater than 12dB
5. High-quality speech amplifier, with +48V phantom power, independent switch control for each phantom power, no mutual interference.
6. Each input has independent gain adjustment, which can be used for different microphones at the same time
7. The first four microphonescan choose Canon or 6.35 interface input, easy to connect
8. Music LINE input volume is adjusted separately, and there is signal indicator light, intuitive operation
The 9.8-channel microphone has a total volume adjustment knob on the panel, with signal indicator and peak indicator, making the operation more convenient
10. Left and right balanced output, with 8-segment LED level indication, adjustable output size, better signal-to-noise ratio.
11. The microphones and music of each channel are output after the output is mixed, and it can also be used as a mixer
12. Sandblasting process of aluminum panel, transparent button, distinctive appearance
1. Effectively suppress microphone whistling and eliminate feedback in advance, one-button operation mode, simple and easy to use
2. Using DSP technology, real-time capture of howling points, automatically adapt to the acoustic environment
3. Ultra-long conference microphone pickup distance, which can automatically adapt to the pickup distance
4. 8+2 input, 8 microphone input and two LINE input (music input), microphone and line input gain is adjustable, the adjustment range is greater than 12dB
5. High-quality speech amplifier, with +48V phantom power, independent switch control for each phantom power, no mutual interference.
6. Each input has independent gain adjustment, which can be used for different microphones at the same time
7. The first four microphonescan choose Canon or 6.35 interface input, easy to connect
8. Music LINE input volume is adjusted separately, and there is signal indicator light, intuitive operation
The 9.8-channel microphone has a total volume adjustment knob on the panel, with signal indicator and peak indicator, making the operation more convenient
10. Left and right balanced output, with 8-segment LED level indication, adjustable output size, better signal-to-noise ratio.
11. The microphones and music of each channel are output after the output is mixed, and it can also be used as a mixer
12. Sandblasting process of aluminum panel, transparent button, distinctive appearance
Specifications
technical parameter
Frequency response: 20Hz~20KHz, +/-1.5dB
DSP sampling rate: 192KHz
AD/DA conversion: 24 bits
Total frequency distortion: <0.01% (+4dBU, 1KHz)
Maximum output: +22dBu (balanced), +16dBu (unbalanced)
Signal to noise ratio: >95dB
net weight:
Gross weight:
Size: 48.3*24.0*4.4(CM)
Packing size: 54*33*9.5(CM)
Input power: 220v~50Hz (China) 230V~50Hz (Europe) 240V~50Hz (UK) 110V~60Hz (USA)
Frequency response: 20Hz~20KHz, +/-1.5dB
DSP sampling rate: 192KHz
AD/DA conversion: 24 bits
Total frequency distortion: <0.01% (+4dBU, 1KHz)
Maximum output: +22dBu (balanced), +16dBu (unbalanced)
Signal to noise ratio: >95dB
net weight:
Gross weight:
Size: 48.3*24.0*4.4(CM)
Packing size: 54*33*9.5(CM)
Input power: 220v~50Hz (China) 230V~50Hz (Europe) 240V~50Hz (UK) 110V~60Hz (USA)
