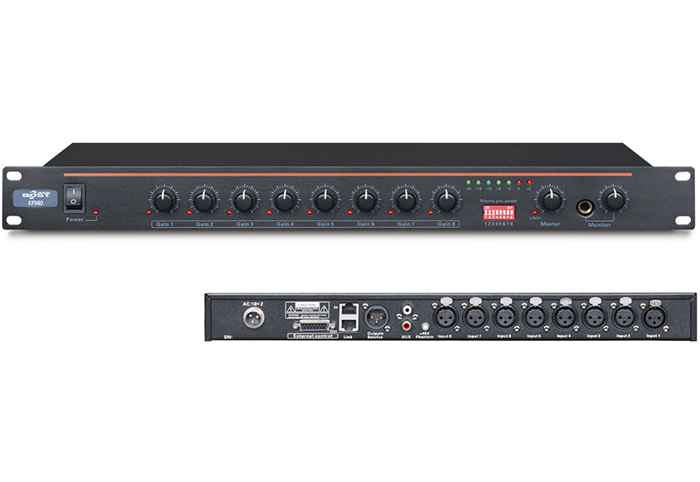

KF980 Mixer

Product Description

8-channel automatic microphone / line input, or auxiliary input
Each channel can be set as priority speech. When speaking in the priority channel, the speech of other channels will be automatically closed
Automatic threshold setting, ultra low local noise
Each channel has built-in voltage limiter to prevent overload of individual channels
The volume of each channel can be adjusted independently, and the low switch switch of each channel can be adjusted
It has 48V phantom power supply system and switch control options to meet the needs of phantom power supply and non phantom power microphone input
Channel 1-4, channel 5-8 phantom power select independent switch
Balanced input and output, any I / O channel microphone / line level selector
Input gain control for any input channel
Manual mode can be switched and automatic mode is preferred
Main output level control with LED display
Adjustable level monitor headphone output
It is suitable for meeting rooms, multi-function halls, lecture halls and courtrooms where microphone mixing is required

Applications

It is suitable for meeting rooms, multi-function halls, lecture halls and courtrooms where microphone mixing is required

Specifications

Power supply mode: AC 220 V / 50 Hz
Input impedance: 8K Ω
Output impedance: 300 Ω
Input sensitivity: - 38dB ~ - 50dB
Maximum input level mic 12dbv
Standard output level: line 0dbv
Frequency response: 20Hz-20KHz
Inherent noise: - 80dbv
Input attenuation: 3-6db
Maximum gain: 70dB
Frequency response: 20Hz-20KHz
Inherent noise: - 85dbv
Phantom power supply: + 48V
Control output voltage: + 3.8V
Power consumption: 12W
Size: 430mm long, 225mm wide and 45mm high

Weight: 3.5kg



Configuration
