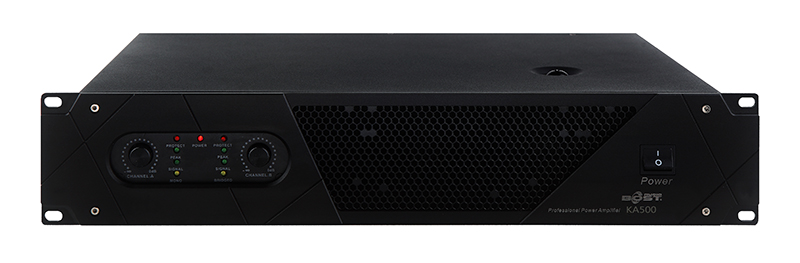

KA500
Product Description
Using imported audio capacitors, the sound is transparent and sweet. Perfect and accurate protection circuit, more effective protection and matching speakers.
All use automatic manufacturing processes such as SMD patch and laser scanning, and all semiconductor components are imported, which greatly improves the reliability and consistency of products.
All use automatic manufacturing processes such as SMD patch and laser scanning, and all semiconductor components are imported, which greatly improves the reliability and consistency of products.
Specifications
Model: KA500
8Ω: 2X500W, 4Ω2X700W,
Frequency Response: 20Hz-20kHz, ±1XB
Input sensitivity: 0.7V 1.0V 2.0V
Input resistance: 20kΩ/balanced, 10kΩ/unbalanced
Distortion: ≤0.05% (1KHz, 1W)
Signal to noise ratio signal: ≥90XB
Damping coefficient:＞300
Conversion speed: 15V/uS
Protection system: overload protection, short circuit protection, overheating protection.
Cooling system: 2-way variable speed fan
Input power: AC220-240V 50Hz
Weight (kg): 13Kg
Dimensions: (WxDxH) mm490*305*82 (1.5U) cabinet
