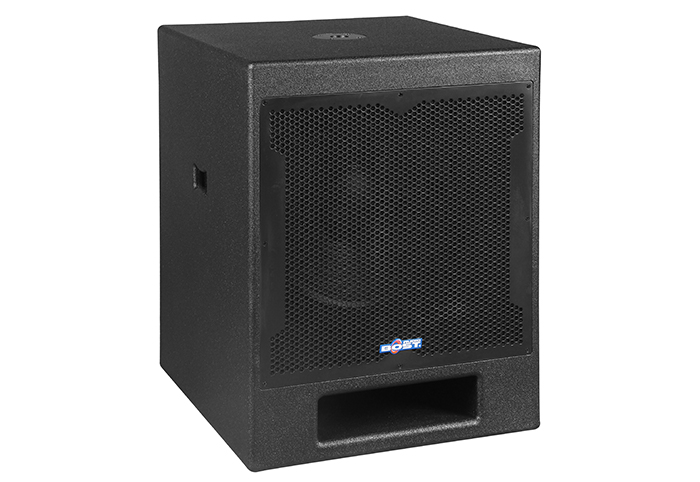

VC12B/VC12BE(subwoofer)

Applications

Application Range: Function rooms, banquet halls, auditoriums, conference rooms, lecture halls, exhibition halls, cafes, home theater, luxury rooms, performing arts hall, club

Specifications

Model VC12B (active subwoofer)
Drivers
 LF:  1*12"  190magnet, 75core
Rated Power
400W
Rated power
800W
Nominal impedance
 8 ohms
Frequency Range
25Hz-260KHz
Sensitivity(1m/1W)
95dB
MAX SPL)
124dB
Construction
Enclosure Material
 Plywood
Enclosure Grille
 Air permeable cotton in black round hole dustproof steel mesh
Finish
 Black environment-friendly waterproof and wear-resistant paint (color can be customized according to customer requirements)
Dimensions(W*D*H)(mm)
 398*430*560
Net weight  (Kg)
 24.5Kg


Molde VC12BE(active)
Drivers
 LF:  1*12"
Rated Power
400W
Rated power
400W+900WActive Module with DSP
Nominal impedance
 8 ohms
Frequency Range
25Hz-260KHz
Sensitivity(1m/1W)
95dB
MAX SPL
124dB
Construction
Enclosure Material
 birch Plywood
Enclosure Grille
Air permeable cotton in black round hole dustproof steel mesh
Finish
 Black environment-friendly waterproof and wear-resistant paint (color can be customized according to customer requirements)
Dimensions(W*D*H)(mm)
W398*D430*H560
Net weight (Kg)
 29.7Kg
