Q6
Applications
Meeting room, multi-function hall, auditorium, music bar, clear bar, family film K, restaurant and shopping mall.
Specifications

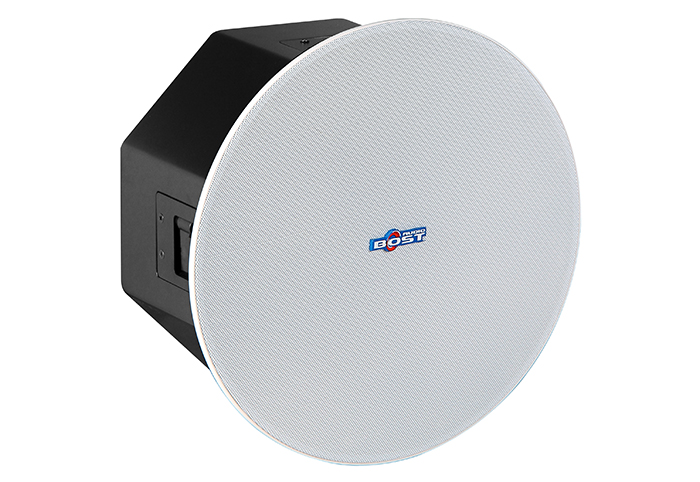

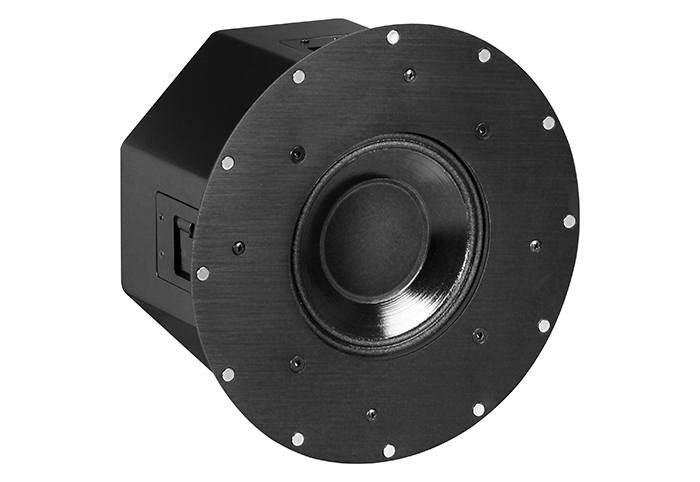

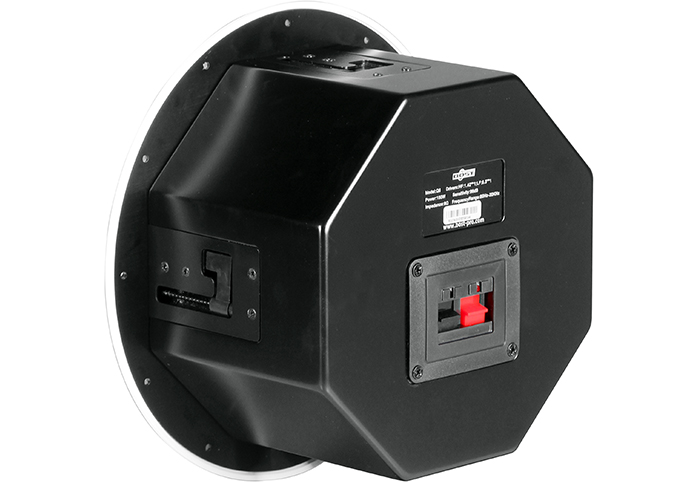

| Model | celling-mounted speaker Q6 |
|
Drivers |
LF: 6.5"*1,HF: 1.42"*1 |
|
Rated Power |
150W |
|
MAX power |
300W |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
80Hz-20KHz |
|
Sensitivity(1m/1W) |
96dB(1m/1W) |
|
MAX SPL |
121dB |
|
Dispersion(HxV) |
90°*90° |
| Construction | |
| Enclosure Material | High density pine board + brushed aluminum |
|
Enclosure Grille |
White round hole dust proof metal mesh with breathable mesh cloth |
|
Finish |
Black matte, waterproof, wear-resistant painting (customized color according to customer requirements) |
|
Dimensions（mm) |
Diameter:281mm, Height:143mm |
|
Net weight (Kg) |
4.2Kg |
