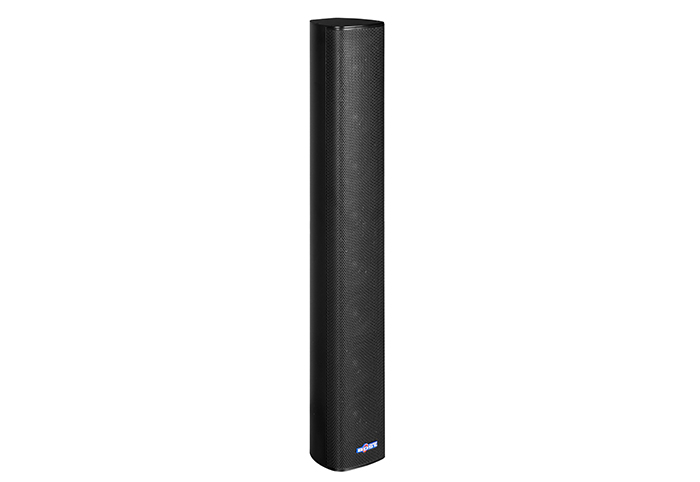

MR804/MR804E(active)
Product Description
●The aluminum alloy box body has a compact structure and an exquisite appearance.
●4" full-range speaker units, with sweet sound quality and excellent vocal reproduction, are particularly suitable for language amplification occasions.
●It is easy and quick to install and can be suspended horizontally or vertically.
●4" full-range speaker units, with sweet sound quality and excellent vocal reproduction, are particularly suitable for language amplification occasions.
●It is easy and quick to install and can be suspended horizontally or vertically.
Applications
Meeting rooms, lecture halls, multi-functional halls, auditoriums, schools, coffee shops, stations and docks, etc.
Specifications
| Model | MR804/MR804E(active) |
|
Drivers |
LF:8*4"Neodymium full-range speaker |
|
Rated Power |
400W /Adjustable directivity DSP power amplifier module 8X30W |
|
Rated power |
800W |
|
Nominal impedance |
4 ohms / 8 ohms |
|
Frequency Range |
110Hz-20KHz |
|
Sensitivity(1m/1W) |
100dB |
|
MAX SPL |
129dB |
|
Dispersion(HxV) |
90°*90° |
|
Construction |
|
|
Enclosure Material |
High-grade aluminum alloy |
|
Enclosure Grille |
The black round-hole dust-proof steel mesh is lined with breathable cotton |
|
Finish |
The fine sand is sprayed and oxidized black |
|
Dimensions(W*D*H)（mm) |
126*133*865 |
|
Net weight) (Kg) |
/ |
Configuration
